Key Features

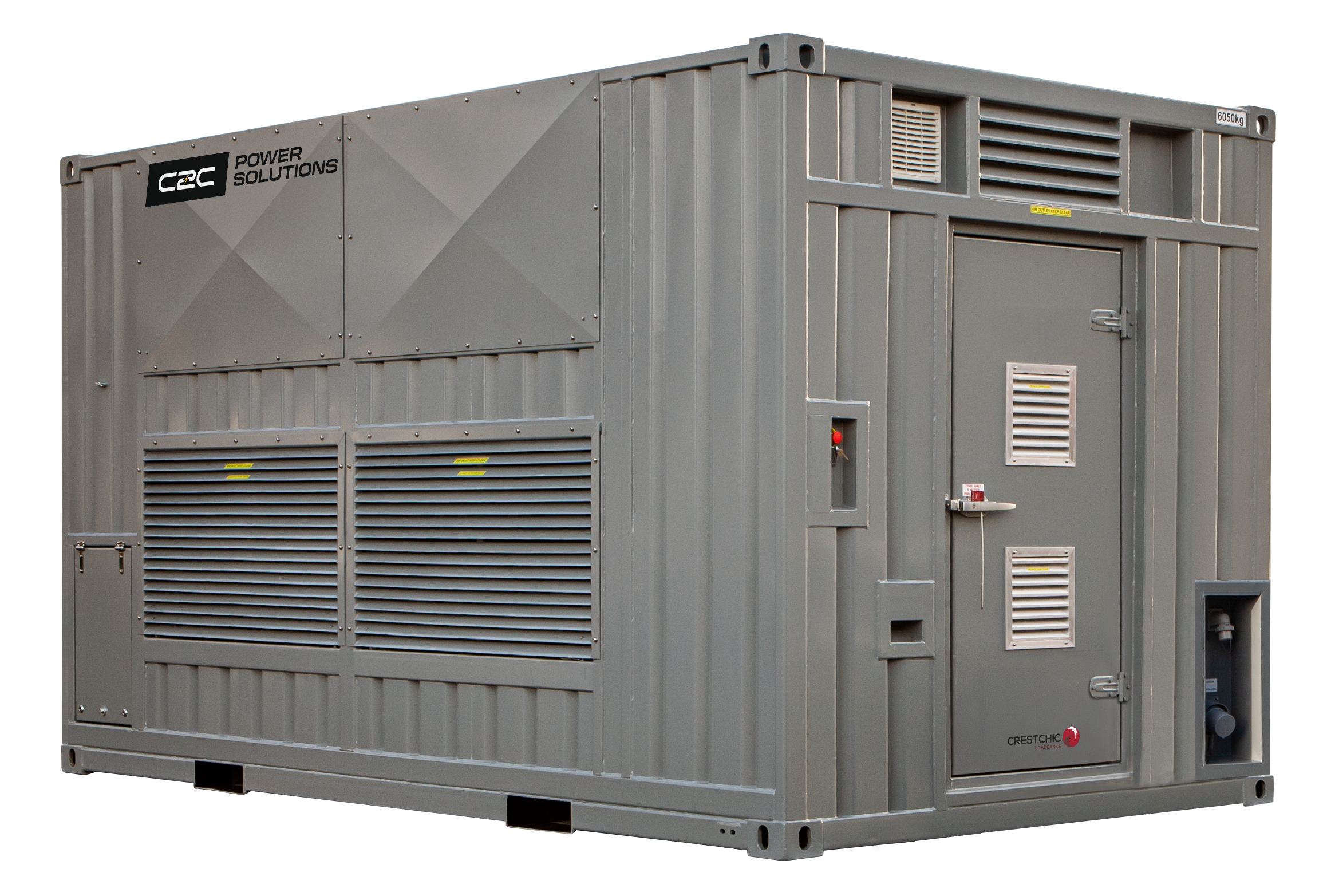

High-Capacity Packaged Load Bank
This packaged load bank delivers an impressive 3.5 MW of power with a 1 kW load-step resolution. Housed in a rugged ISO-type container, it is designed for durability, security, and ease of use in demanding environments.
Extreme Capacity
TThe 3.5 MW capacity makes this unit the perfect choice for testing the largest generators, transformers, and UPS systems.
Engineered for the Field
The ISO container enclosure provides a durable shell for transport and on-site use. It includes a control chamber with an IP55 rating and twistlock corners for easy lifting.
Reliable Connections
With 12 Cam-Lok connectors per phase, this unit offers robust and redundant connection points for high-current applications.
All-Weather Performance
Built to perform in tough environments, this unit has a rated operating temperature range from -20°C to +50°C.
Why Rent this Load Bank?
The Ultimate Solution for Utility and Mission-Critical Applications
Our 3.5 MW load bank is the ultimate powerhouse for your most demanding projects. This unit is designed for applications where failure is not an option and where massive electrical loads must be precisely controlled and measured.
Utility and Grid Testing
Power companies and large-scale renewable energy projects often need to test their systems under extreme conditions. A 3.5 MW load bank can simulate massive, transient loads to verify the stability and performance of new generators, substations, or large-scale grid connections.
Mega-Scale Data Center Commissioning
When commissioning a hyperscale data center, it’s essential to test the power infrastructure at a scale that matches the facility itself. Our 3.5 MW units provide the capacity to test entire power distribution units (PDUs), uninterruptible power supplies (UPS), and large generator arrays.
High-Power Component Testing
For manufacturers or large-scale contractors testing custom switchgear, transformers, or busway systems, a 3.5 MW load bank provides the heavy resistive load required for full system validation before deployment.
Disaster Recovery & Emergency Response
Following a major power event, a 3.5 MW load bank can be paired with a generator to restore temporary power to critical infrastructure such as hospitals, municipal water treatment plants, or telecommunications hubs—providing immediate relief while permanent repairs are made.
Specifications
Manufacturer
Crestchic UK
Capacity
3500 KW are linkable for larger loads
Control System
Hand-held, PC, or manual control systems
Enclosures
Weatherproof enclosure
Design Voltage
60HZ -480 volts, 3-phase
Fan and Control Power
Via main bus or 20 amp, 480 volt, 3 phase external source
Dimensions
Height 102″| Width 96″ | Length 146″ | Weight 11,000 lbs
Footprint
102″ x 96″ Shipping container
Minimum Load Steps
1kW
Ambient Parameters
Maintains maximum capacity in ambient conditions up to 120° F
Air Flow
Side intake, side exhaust
Load Connections
Cam-Loks 12 per phase
Transportable
Forklift base or trailer mountable
Permanent Installation
N/A
