Key Features
Industry-Leading Compact Design
Multi-Tap Transformer + Resistive/Reactive Load Bank with Siemens Protective Switchgear packaged within a 30′ ISO weatherproof container.

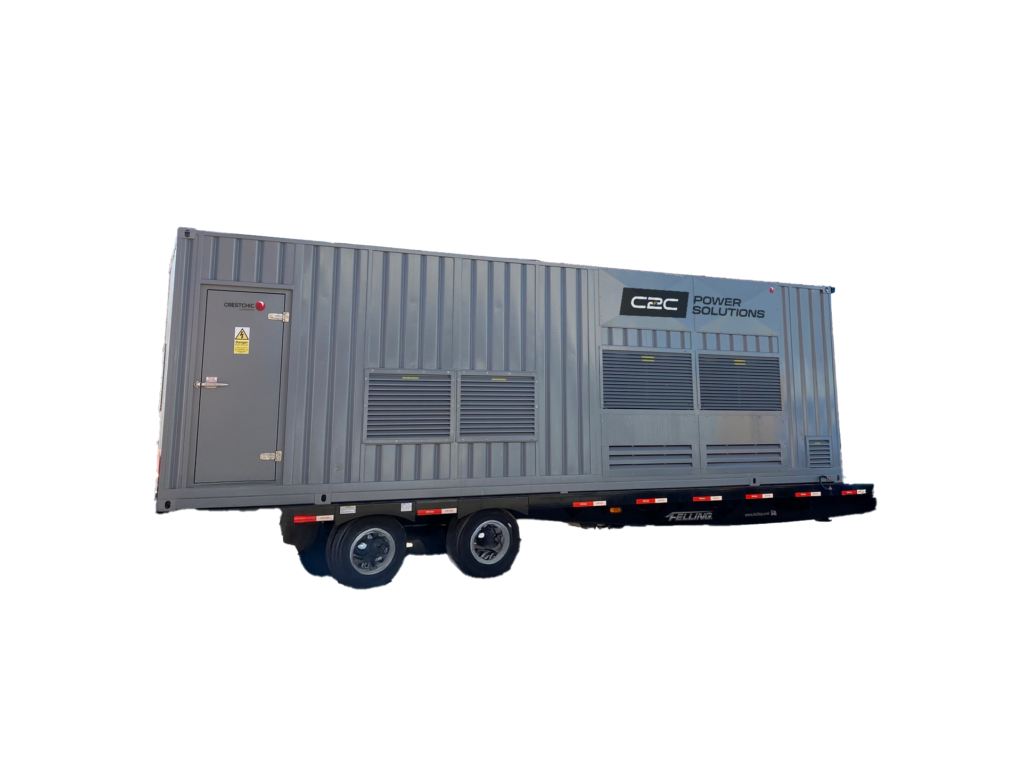

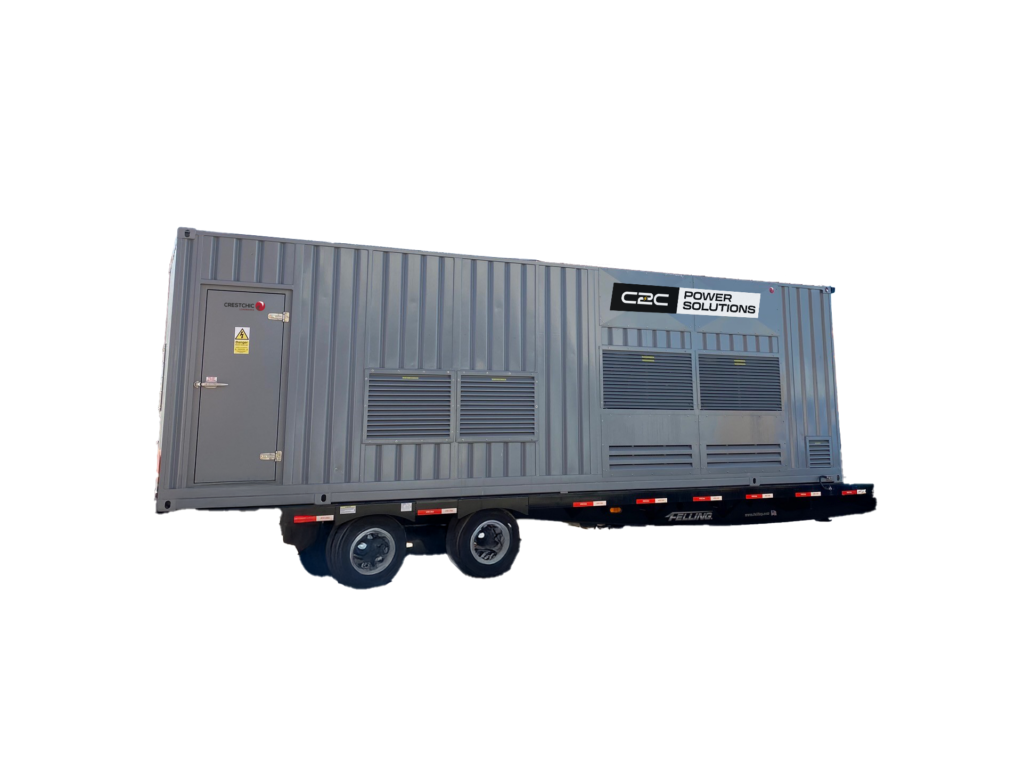

Rapid Deployment with Integrated Mobility
Mounted on a heavy-duty trailer with a built-in generator for fan operation, the load bank ensures quick setup and is fully operational within two hours. With a 2,800 kW capacity at 0.8 power factor across multiple medium voltages (2,400 V to 14,400 V, 60 Hz) and linkable units, it’s ideal for high-capacity, on-the-go testing.
High-Capacity Multi-Voltage Flexibility
The 3500MVLB Crestchic Load Bank delivers a robust 2,800 kW at 0.8 power factor across multiple medium voltages (2,400 V to 14,400 V, 60 Hz), with linkable units for larger loads. Its 10 kW minimum load steps ensure precise testing across a wide range of applications
Why Rent this Load Bank?
Cost-Effective Project-Specific Testing
A trailer setup is a high-capacity, specialized piece of equipment with a significant purchase cost. Renting a load bank helps avoid high capital investment and ongoing ownership expenses such as depreciation and insurance. The trailer’s mobility and quick two-hour setup make it ideal for short-term deployments at multiple sites.
Enhanced Mobility and Advanced Features
The trailer-mounted design, complete with an onboard generator for fan operation, Siemens switchgear for reliable power distribution, and 15 kV cabling, allows for rapid deployment and easy relocation without cranes or heavy equipment. Renting provides access to state-of-the-art equipment with modern control systems (hand-held, PC, or manual) and high-voltage capabilities, which may be more advanced or better suited to specific testing needs than an owned, potentially outdated unit. Renting also offers flexibility to scale testing by linking multiple units for larger loads.
Elimination of Maintenance And Logistics Costs
Owning a 50,000-lb., 30′ x 8′ trailer-mounted load bank requires significant resources for storage, regular maintenance, calibration, and transportation logistics. Rental providers handle these responsibilities, delivering a fully maintained, ready-to-use unit with features such as weatherproof enclosures and side-intake/top-exhaust airflow for operation in harsh conditions up to 120°F. The onboard generator and Siemens switchgear further reduce setup complexity, saving time and labor costs.
Specifications
Manufacturer
Crestchic UK
Power Range
60Hz
Footprint
30′ x 8′ ISO Container
Capacity
2800kW @ 0.8pf @ multi, medium voltages, 60 Hz, 3 phase, units are linkable for larger loads
Design Voltage
2400V, 4160V, 7200V, 12000V, 12470V, 13200V, 13800V, 14400V, 60Hz
Minimum Load Steps
10kW
Connections
Bare Bus; 500MCM 15KV dead break pig tails
Control System
Hand-held, PC, or manual control systems
Ambient Parameters
Maintains maximum capacity in ambient conditions up to 120° F
Fan and Control Power
Via main bus or 20 amp, 480 volt, 3 phase external source
Air Flow
Side intake, top exhaust
Enclosures
30′ ISO weatherproof container
Dimensions
Height: 9.5′ | Width: 8.0′ | Length: 30′ | Weight: 50,000 lbs.
Purchase Load Bank
As the Crestchic Loadbank experts, our team can help you find the best new or pre-owned load bank for your business needs. Let’s connect today.
Rent Load Bank
What are the requirements for your next project? The C2C rental team can assist you with your next load bank rental.
